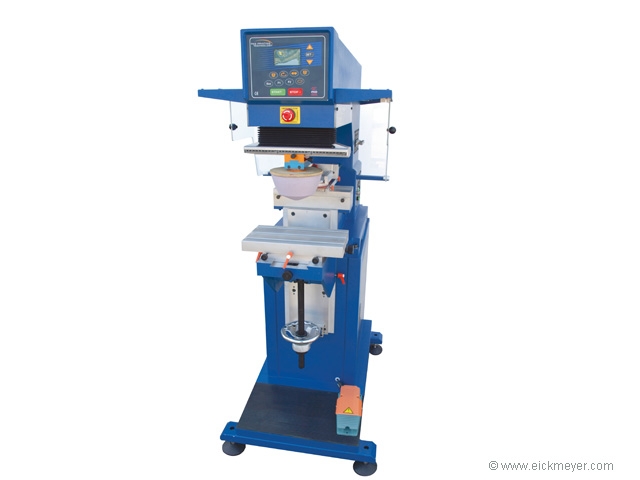

Pad Printing Machine TIC 141 SCDEL (PRL1D), ø 140

Prices after login !!!

Product No.: 16005141SCDEL140
Print product data sheet

Delivery time:

on request

Pad Printing Machine TIC 141 SCDEL (PRL1D), ø 140

1-colour-machine, stand model, electro pneumatic contol, closed ink system, ink cup ø 140mm, cliché size 150x300mm, with cross feeding table, which is height-adjustable via spindle, pad pressure 168 kg when 6 bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor rings, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
