Pad Printing Machine TIC 151 SCDEL manual

Prices after login !!!



Product No.: 16005151SCDEL
Print product data sheet
Delivery time: on request

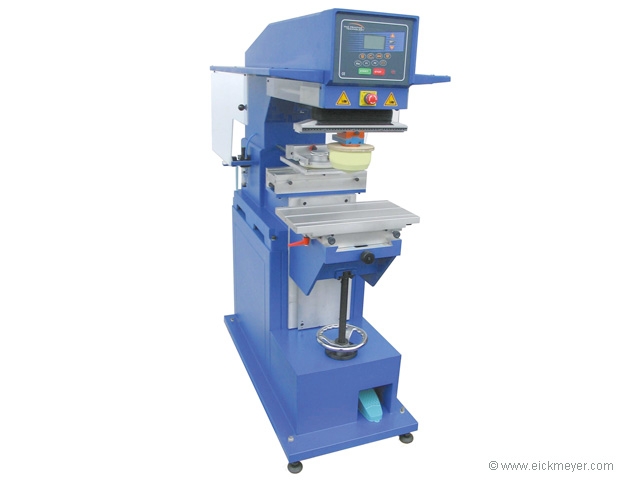

  Pad Printing Machine TIC 151 SCDEL manual

1-colour-machine, stand model, electro pneumatic contol, closed ink system, ink cup: ø 140mm, cliché size 150x320mm, ink cup ø 140 mm, with cross feeding table, which is height adjustable via spindle, pad pressure 270kgs when 6 bar, needed compressed air: 6bar, needed power supply: 230V, 50Hz

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor rings, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch.

Prospekt / Prospect
