Pad Printing Machine TIC PCK4M165 (SCDEL)

Prices after login !!!

Product No.: 16011PCK4M165-IPPCCL
Print product data sheet

Delivery time:

on request

Pad Printing Machine TIC PCK4M165 (SCDEL)

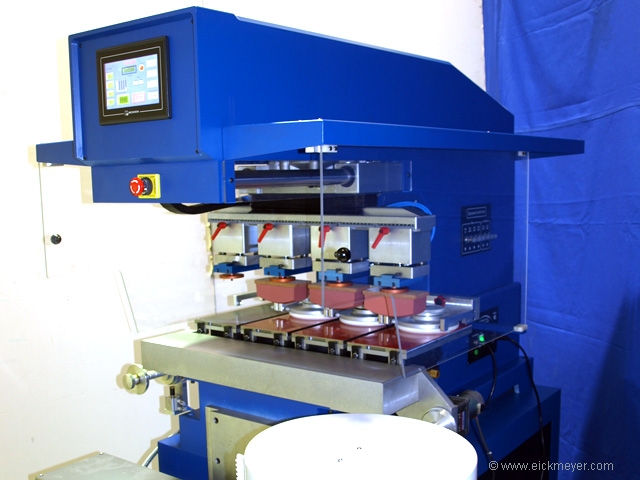

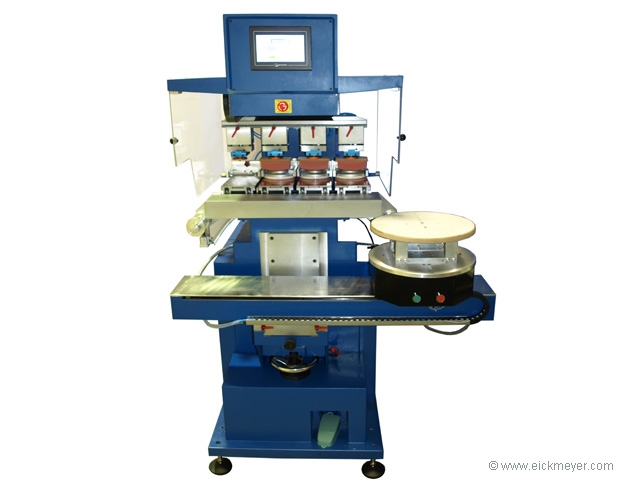

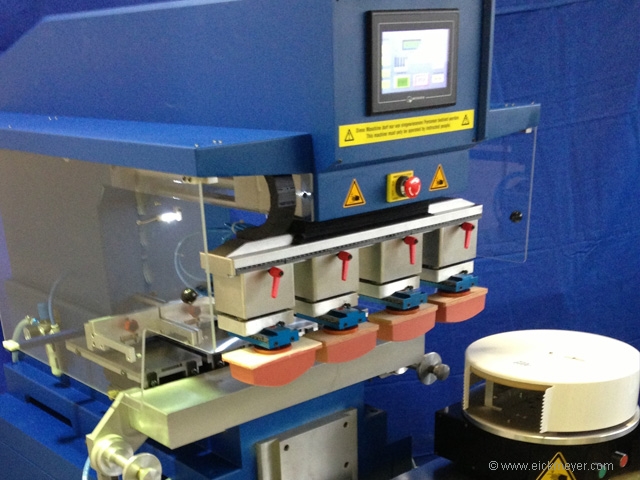

4-colour-machine, stand model, electro pneumatic control, closed ink system, with integrated cleaning unit, equipped with additional cylinders for each pad, ink cup ø: 90mm (option: ø 140mm), cliché size: 4x100x300mm (option: 4x150x320mm), with servo controlled sliding table, height adjustable via spindle, pad pressure 270kg when 6bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear touchscreen display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, print parameter adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor ring, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230V, 50cycles.
