Pad Printing Machine TIC PRL2P-IP-PC-CL

Prices after login !!!



Product No.: 16011PRL2P-IPPCCL
Print product data sheet
Delivery time: on request
  Pad Printing Machine TIC PRL2P-IP-PC-CL
  Pad Printing Machine TIC PRL2P-IP-PC-CL
  Pad Printing Machine TIC PRL2P-IP-PC-CL

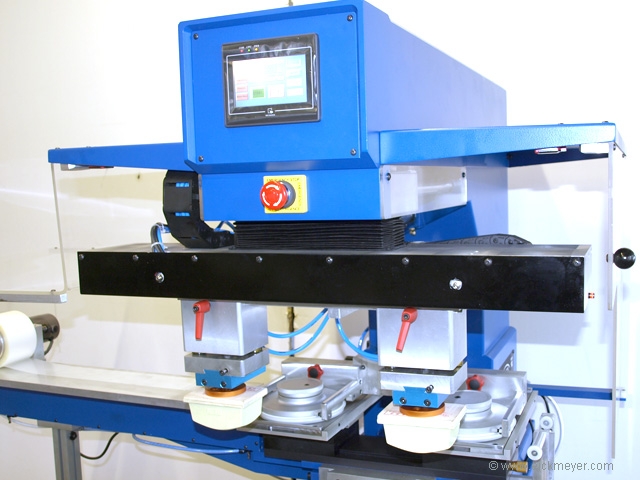

2-colour-machine, stand model, electro pneumatic control, closed ink system, with pad movement and cleaning unit, equipped with additional cylinders for each pad, ink cup ø: 140mm, cliché size: 2x150x320mm, with cross feeding table which is height-adjustable via spindle, pad pressure: 240kgs when 6bar, compressed air connection: 6bar, supply voltage: 230V, 50Hz.

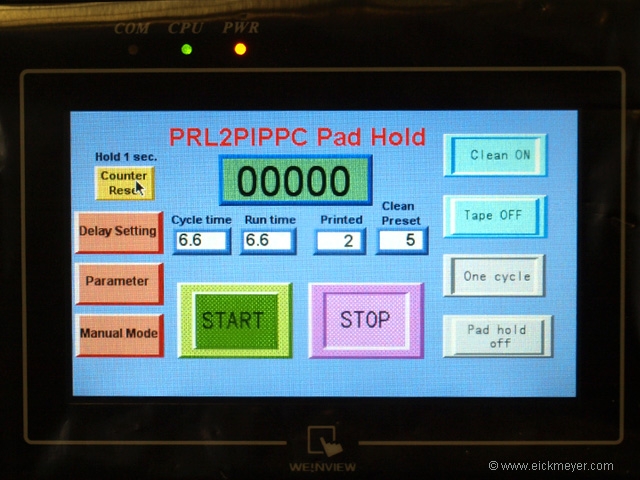

Sturdy housing made of aluminium cast, electro-pneumatic control, incl. touchscreen display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table for positioning of higher objects. European/Japanese pneumatic elements, silent running by airborne sound absorbers, print parameter adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic ring, contact pressure adjustable via magnetic adjustment. All machines equipped with safety glass at the sides as well as emergency switch and foot switch.
