Pad Printing machine TIC 121 SCE / PRS1 (LCD)

Prices after login !!!

Product No.: 16003121SCE
Print product data sheet

Delivery time:

3 - 7 Days after payment

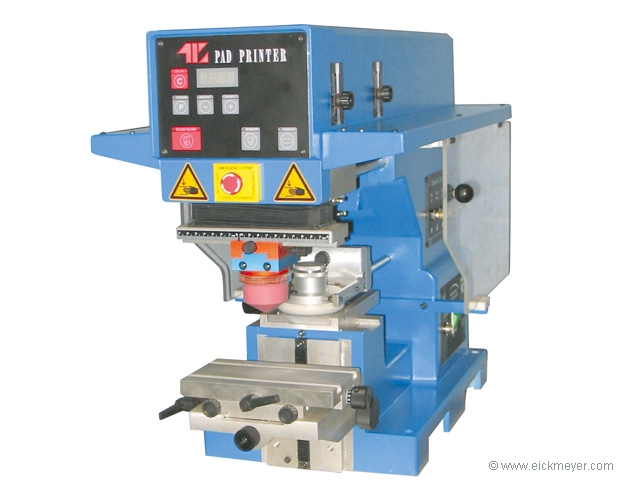

Pad Printing machine TIC 121 SCE / PRS1 (LCD)

1-colour-machine, table-top model, electro pneumatic control, closed ink system, ink cup: ø 70mm, cliché size: 80x175mm, height adjustable cross feeding table, pad pressure 43 kg when 6 bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure infinitely adjustable via sensor switch, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor ring, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed conncection: compressed air 6bar, 230V, 50cycles.
