Pad Printing machine TIC 187 SDEL

Prices after login !!!



Product No.: 16008187SDEL
Print product data sheet
Delivery time: on request
  Pad Printing machine TIC 187 SDEL
  Pad Printing machine TIC 187 SDEL

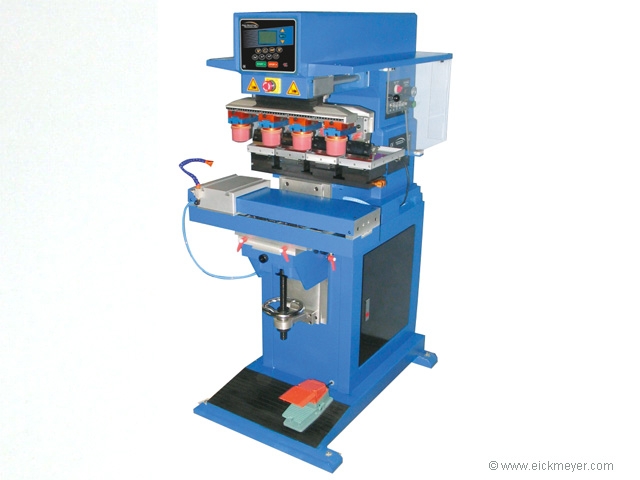

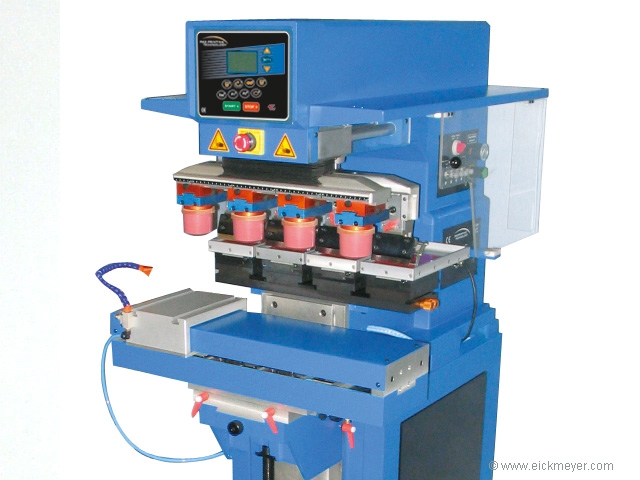

4-colour-machine, stand model, electro pneumatic control, open ink system, clichée size: 4x100x150mm, with pneumatic controlled sliding table, which is height-adjustable via spindle, pad pressure 168kgs when 6bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, automatically adjusting doctor blade, squeegee pressure infinitely adjustable for optimal doctoring of the ink. Inkwells easy to clean by integrated magnetic plates. All models with open ink system can easily be re-constructed for bigger inkwells. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
