Semi-Automatic Screen Printing Machine SIRIMAC 4560E

Prices after login !!!

Product No.: 25C001
Print product data sheet

Delivery time:

on request

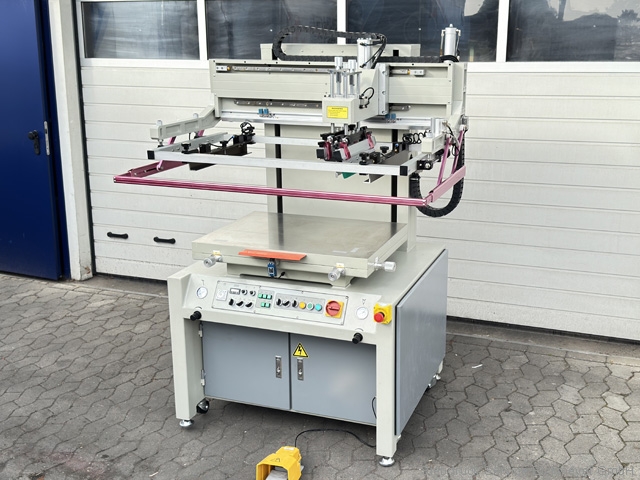

Semi-Automatic Screen Printing Machine SIRIMAC 4560E

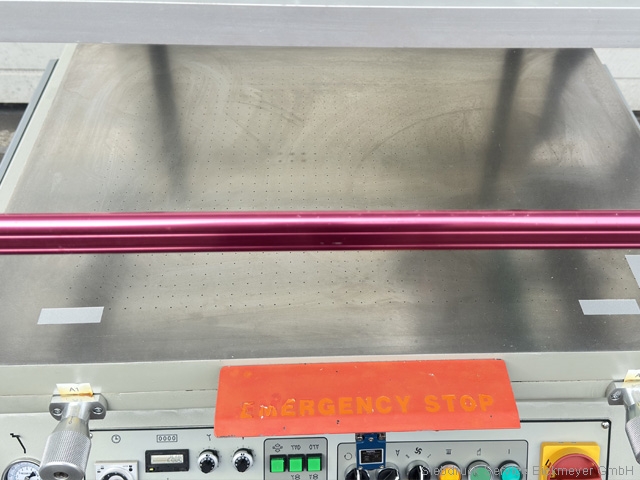

Electro-mechanical machine, parallel lift, printing size 45x60cm, vacuum printing bed 60x80cm, max. screen frames 75x100cm, screen frame up and down motion via gear-self-braking motor, with cross-running squeegee unit, squeegee drive motor adjustable, print and flood speed separately adjustable, squeegee stroke adjustable via limit switches, pneumatic squeegee reverse, pneumatic print and flood pressure adjustable via manometer, squeegee and floodbar with fast-clamping system, with adjustable screen lift, with pre-vacuum procedure, selectable single cylce or automatic printing operation, pre-squeegee function, multiple printing, connection: 400V, 50Hz, 10A, compressed air 6bar necessary, used machine.
