Manual Printing Table Model SP, Parallel Lift, 100x200

Prices after login !!!

Product No.: 26C004
Print product data sheet

Delivery time:

1 - 3 Days after payment

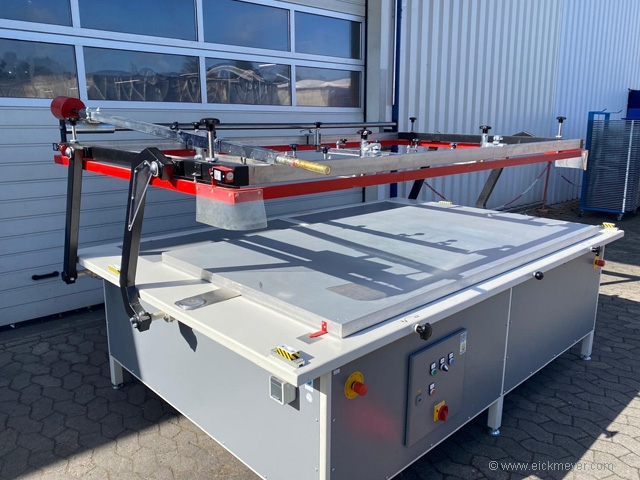

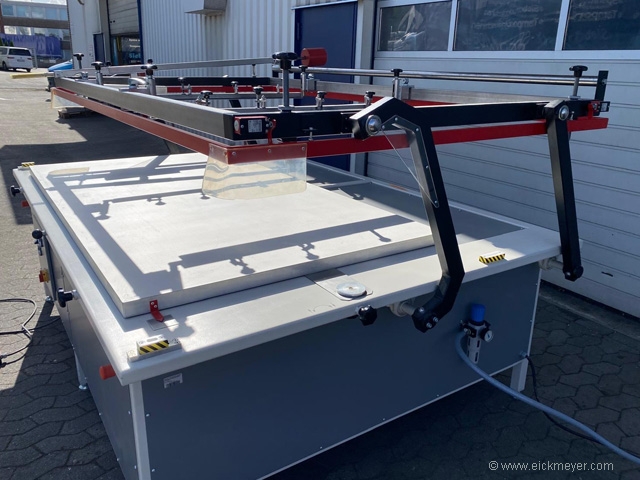

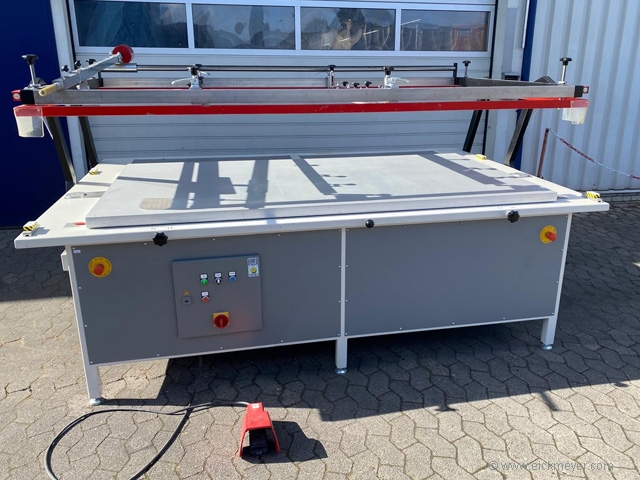

Manual Printing Table Model SP, Parallel Lift, 100x200

Printing size: 100x200cm, printing bed size: 120x220cm, max. screen size: 140x250cm, 400V, 50Hz, 1kW, compressed air 6bar and CEE plug 16A necessary! Year of Manufacture: 2014, rarely used, good condition.

Precision table with parallel frame lift, aluminium vacuum printing bed with micro-adjustment, one-man squeegee, pneumatic up and down movement via foot pedal, powerful vacuum with pre-vacuum device, with master frame (height adjustable via spindles), movable screen depositing bars for different sizes of screen frames, depositing bars with additional height adjustment, upper frame with surrounding safety bar, squeegee unit with ball bushing guide and adjustable counter weights. Squeegee angle to modify via adjustable screw.
